Bi-directional Electricity Energy Saving Monitor and Control System
The difference between our uni-directional (1-way) energy monitoring system and our bi-directional (2-way) monitoring and control system is that a 1-way system transmits signals only from the transmitter to the monitor while a 2-way system allows for transmission both ways. Therefore, the wireless 2-way system allows the homeowners to conveniently and effectively control their energy management usage.
- 1pc controller with power adapter: The controller receives data from the transmitters and sensor plug sockets and displays the real time data and history information of home energy consumption, solar energy production as well as each appliance’s energy consumption on its LCD screen. The Controller also sends switching on/off instruction wirelessly to the sensor plug sockets to remotely control the appliances.
- 2pcs 1-way transmitters with sensor clamp: One transmitter is for monitoring the total home energy consumption, the other for monitoring the solar energy production. Both transmitters send the collected data to the Controller wirelessly.
- Several 2-way sensor plug sockets that are used to monitor and remote control connected appliances in the system. One system can support up to 12pcs sensor pug sockets. And, No.1-3 sensor plug sockets have automatic intelligent switching on/off function according to the balance between the home energy consumption and the solar energy production.
- 1pc RJ45-USB data cable to provide computer link.
Product Details
|

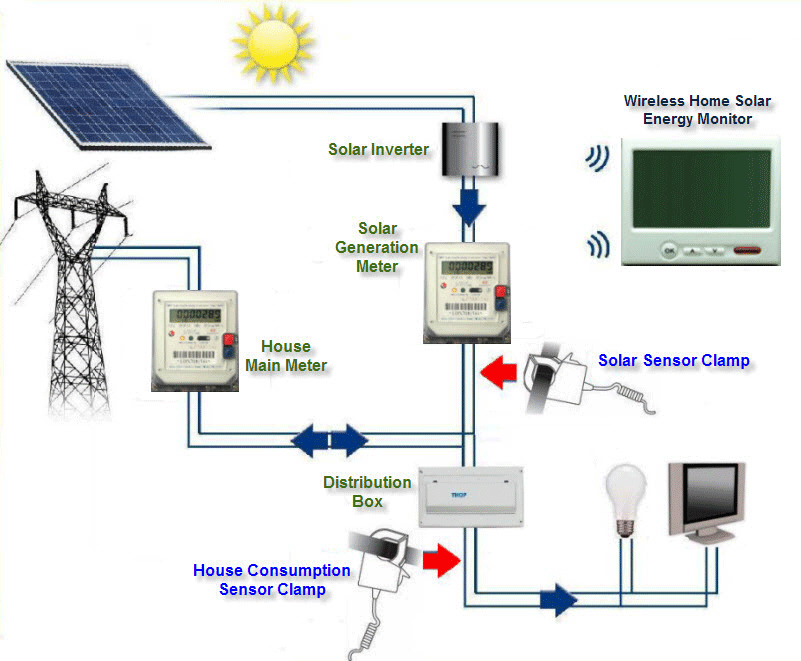

More and more homeowners in the world have installed solar power system or wind micro generator in their homes to generate clean power, reduce the electricity consumption cost and protect the environment as well. Our smart electricity energy monitors with home solar plant monitoring function belongs to our 1-way Energy Monitor and is developed specially for households installed with home solar plant, providing a perfect solution for the home owners to monitor both the home electricity consumed in total and the energy produced by solar. Meanwhile, the system displays the balance between the consumption and production to the family members. This system is only for monitoring purpose, if you also want the system with appliances (lighting) control function, please refer to our wireless energy control system with home solar monitoring function. Working Diagram of 1-way home energy monitor (Solar Version):

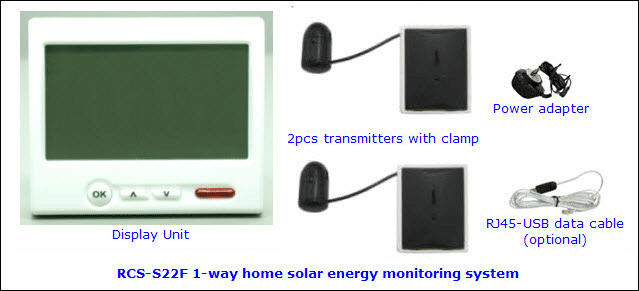

Our products are also being integrated into solar inverters and smart meters, that's the in-home display we are manufacturing for some world brands. Standard Package of Wireless Home Energy Monitor with Solar Power Monitoring Function
The LCD screen of the monitor display home power consumption data, production output by home solar system, balance data, cost data, history data. The user is able to view the comparing data between the solar production and home consumption. The system supports up to 15 channels (15pcs transmitters). With our system, you can keep track of how your solar system is performing, how much money you are saving in electricity costs, and how much your system is benefiting the environment. Basic Introduction of Wireless Home Solar Energy MonitorThe wireless electricity monitors with Home Solar Plant monitoring function is consisted by below parts: 1) 1pc display unit with power adapter: The display unit receives data from the transmitters, calculates and displays the real time and history information on its LCD screen. 2) 2pcs transmitters with sensor clamps: 1pc of transmitter will be used to monitor the electricity output of the solar home plant, the other transmitter will be used to monitor the electricity consumption of the whole home. 3) 1pc RJ45-USB data cable to provide computer link: The RJ45-USB data cable (available with software) serves to provide connection between the monitor and the computer so that the user can view the real time data, the history data from the computer. |

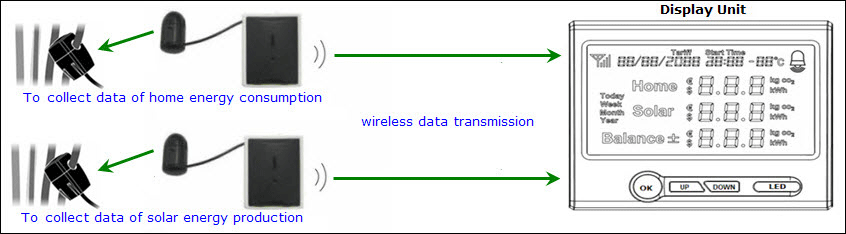

Network of Wireless Home Solar Energy Monitor |
|
|
| Remarks: The real environment may differ from above diagram. Please contact your distributor or installer for advice. |
