One-way energy saving monitor
The one-way energy-saving monitor transmits the current signal sensed by the inductive clip to the display wirelessly through internal processing such as AD, and can display power information in real time.
- The system can be accessed by introducing a 220V power supply to the domestic general switch seat.
- Each monitor has eight channels, which can control the state of eight intelligent sockets.
- The remote control of light can also be realized by RF switch.
- The wall base is standardized, convenient and beautiful.
- Inside, there is a power adapter through safety regulations, which is safe and secure.
- Modular design, installation and maintenance are easy.
Product Details
Overview of unidirectional power monitor:
Electric energy monitors are used for low-cost monitoring purposes. Its transmitter uses sensor clamps (for normal and solar versions) or LED IMP readers (for our optical versions) to collect power consumption data. It provides real-time, timely and convenient feedback of household power consumption on LCD screen of display unit, thus providing constant visual reminder of power consumption and carbon footprint. This will raise awareness of energy conservation and encourage users to take action to reduce energy consumption and CO2 emissions.
If you are looking for a powerful system for larger areas or engineering applications, then our centralized power management system should be your very right choice.
RCS-S22A Wireless Home Energy Monitor Standard Pack (Supporting 15PCS Transmitters and Three Phases)
Our 1-way power monitor can also be used to monitor the power output of household solar power plants and to monitor the balance between solar energy output and household energy consumption. For more information, please refer to our wireless home power monitor and solar power monitoring function.
1-way Energy Monitor Solar Edition
Wireless one-way (1-way) energy-saving monitor uses 43MHz wireless transmission technology, which can be used to monitor the energy consumption of a single energy consumption unit or a main control socket, covering multiple power consumption units. The readable LCD screen of the display displays the power consumption status and the corresponding carbon dioxide (CO2) generated by the power consumption in real time. It predicts the cost of electricity for an hour, a day or a month of monitoring objects. It also has the functions of time display, temperature display and humidity display.

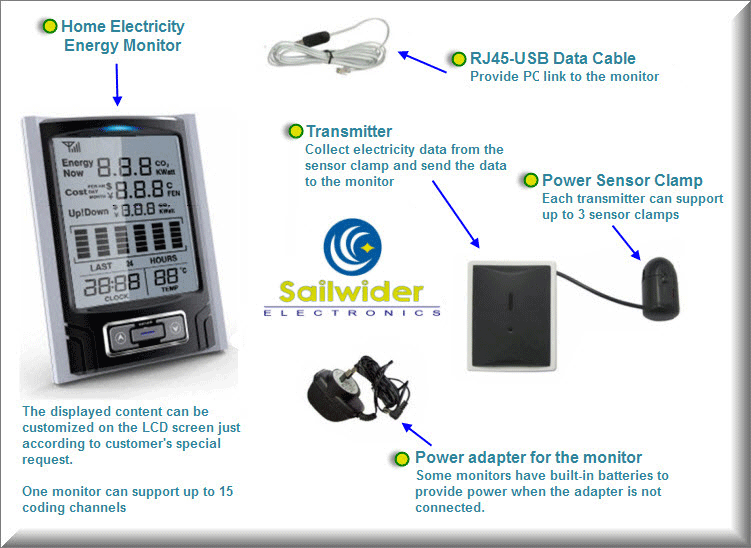

The 1-way system consists of a monitor and a power transmitter, which can support up to 3-phase CS sensor clamps, allowing monitoring of single or three-phase power supply. RJ45-USB data cable can also provide a connection with the computer, so that users can easily analyze power consumption data on the PC.
The monitor can be placed anywhere in the house because it works wirelessly with the power transmitter. So put it in a socket where you can see the energy data on the LCD screen most easily.
Transmitter collects power consumption data through sensor fixture.
Fix the clip on the zero or live line of the monitored object, as shown in the photo on the left. Usually the fixture is fixed on the zero line or live line below the meter.
After the registration (matching) of the power transmitter and the display unit (monitor), the system starts to work and starts to monitor the power consumption of the monitored object in real time. Transmitter can support up to 3 MPCS sensor fixture. Three sensor clamps are needed to monitor the three-phase power supply. The monitor can allow up to 15 coded channels. Up to 15 transmitters can be paired and monitored with only one monitor. We have three kinds of sensor fixtures with different cable diameters: 10mm, 18mm and 25mm. Zero or live wire.
We use our own transceiver module for our wireless monitoring products. If you are looking for RF function module developers and suppliers for your project, we will provide you with personalized services and solutions is the right choice. System Specifications (Specifications can be customized):
| Portability of Monitor | Portable, built-in battery |
| DC Injector | yes |
| Wireless transmission | yes |
| Minimum indoor coverage distance (partition) | 30 m |
